Vibration, air leakage, and noise can disrupt HVAC performance—using a high-quality flexible duct connector ensures smooth airflow and reliable system operation.
A flexible duct connector is a vital HVAC component designed to isolate vibration and prevent noise transmission between air handling equipment and ductwork. It enhances system efficiency, reduces wear, and improves indoor comfort in industrial and commercial ventilation systems.
Learn how flexible duct connectors work, how to install them, and how to choose the right type for long-lasting HVAC performance.

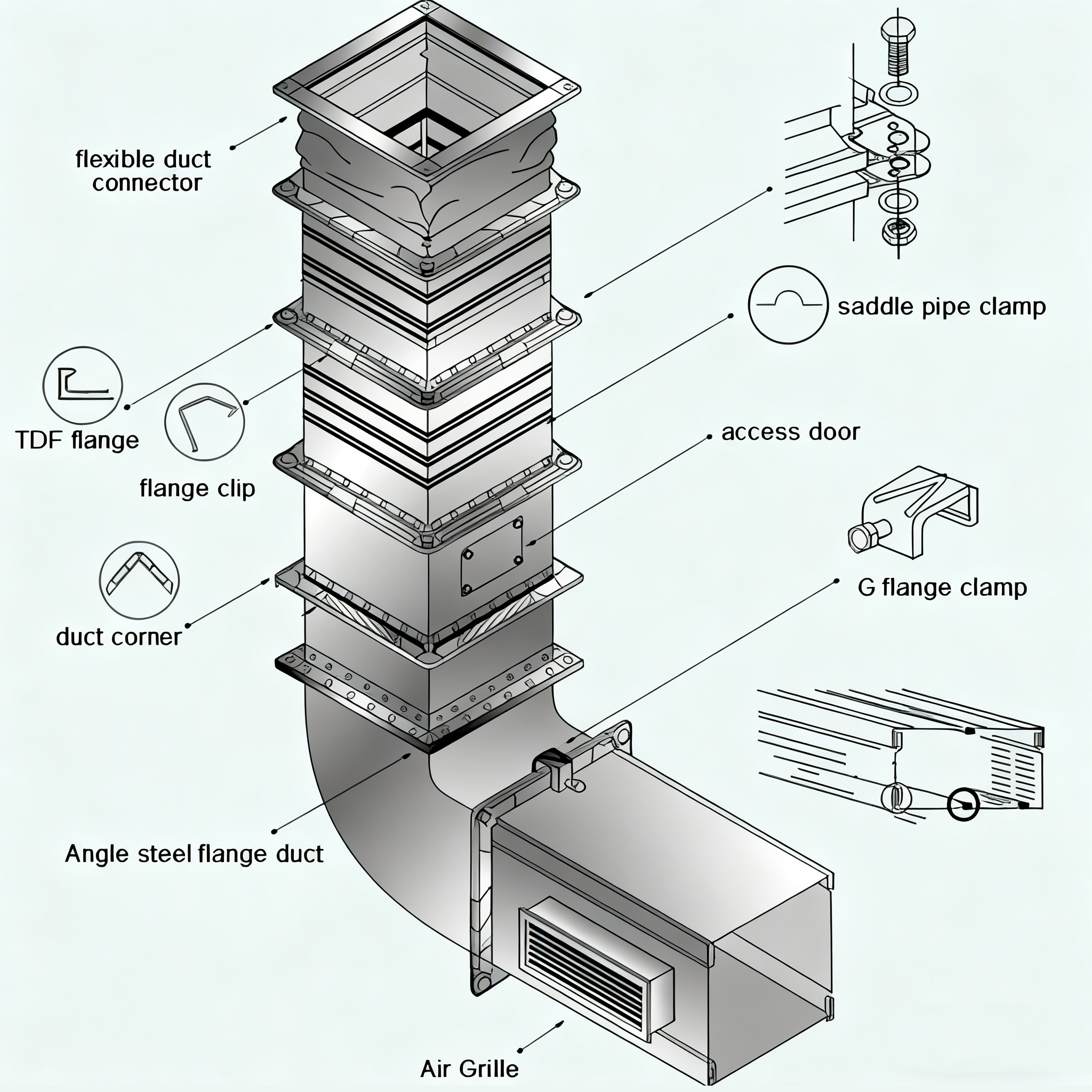

What are flexible duct connectors?
A flexible duct connector, also known as an air duct flexible connector or duct flexible connector, is a specialized component used in HVAC systems to connect air handling units, fans, and ducts. Its main purpose is to absorb vibration and thermal expansion while maintaining airtight airflow. Typically, it consists of a fabric strip—such as fiberglass, silicone, or PVC-coated cloth—joined between two metal flanges. The flexible section prevents mechanical vibration from traveling through the duct system, minimizing noise and extending equipment life. These connectors are especially common in industrial settings, where industrial flexible duct connectors handle higher air pressure and temperature ranges.
In addition to reducing noise, flexible duct connectors help prevent structural damage and improve system efficiency. Without them, rigid ducts could transmit vibration directly into building structures, causing fatigue and noise issues.

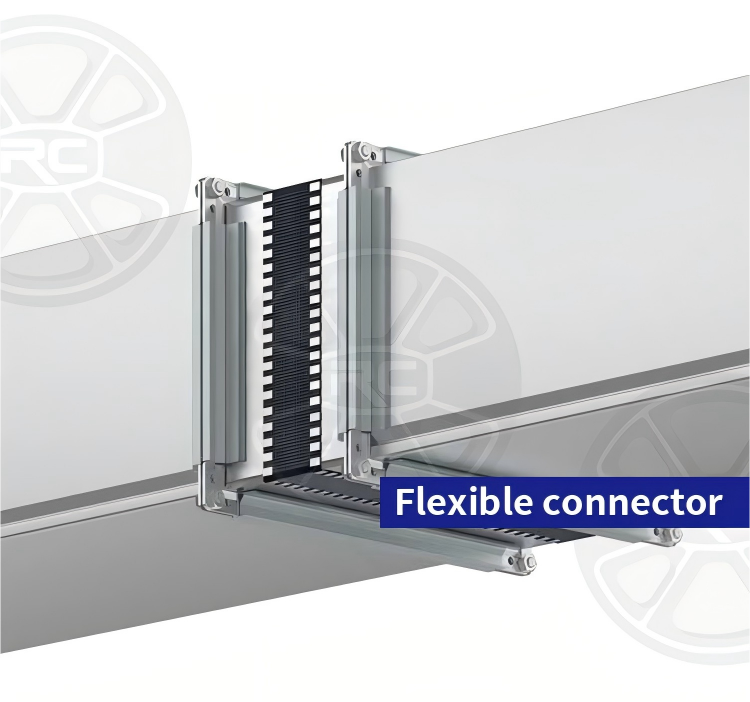

How to install a flexible duct connector?
Installing flexible duct connectors requires precision to ensure both airflow efficiency and system safety. First, measure the duct size and cut the connector to the appropriate length. The air ducting connecting flexible connector to flat surfaces should align properly between the fan discharge and the duct opening. Secure the metal ends of the connector using rivets, screws, or a mechanical fastener, ensuring the flexible fabric portion is centered between the flanges.
Once installed, seal the edges to prevent air leakage. The flexible fabric should not be twisted or overstretched—it must remain relaxed to absorb vibration effectively. For larger HVAC duct flexible connector installations, double-check alignment and tension before system start-up.
A well-installed connector not only prevents vibration transfer but also maintains system pressure balance.
How do fire-rated flexible duct connectors work?
Fire-rated flexible duct connectors are designed to prevent fire and smoke from spreading through ventilation ducts. They are made of fire-resistant fabrics, often fiberglass reinforced with silicone or neoprene coatings, that can withstand temperatures up to 500°C or higher. When installed between ducts and air handling units, they form a safety barrier that blocks flames while maintaining airflow control.
In commercial or industrial environments, fire-rated industrial flexible duct connectors are mandatory for compliance with safety regulations. These connectors not only reduce vibration but also act as fire stops in the duct system. The key function is to prevent fire from transferring between connected units while allowing limited flexibility for vibration control.
Routine inspection and maintenance ensure continued performance and safety in critical HVAC applications.
Choosing the Right Fire-Rated Flexible Duct Connector
Selecting the correct fire-rated duct flexible connector depends on several factors—air temperature, pressure, chemical exposure, and system location. For HVAC systems in high-temperature zones, choose silicone-coated vent fabrics flexible duct connectors for superior heat resistance. In environments with chemical vapors or humidity, neoprene-coated fabrics offer better durability.
Industrial systems may require industrial flexible duct connectors with reinforced stitching and heavier metal flanges to handle greater vibration and airflow velocity. Additionally, the connector’s width and fabric thickness should match the duct size and static pressure. Always verify compliance with UL 181 or other fire safety standards to ensure reliability.
Working with certified manufacturers like Ruichi Hardware, which produces custom air duct accessories, guarantees compatibility and consistent performance for demanding HVAC installations.
How to connect flexible duct to PVC?
Connecting a flexible ducting hose connector to PVC ducting requires a secure and airtight seal to prevent leaks. Start by inserting the end of the flexible duct over the PVC pipe fitting. Use a metal clamp or adjustable strap to secure the connection tightly. In some cases, applying duct mastic or sealant around the joint enhances the seal’s strength and prevents air loss.
For larger installations, mechanical couplers or flanges can be added to reinforce the joint. When connecting air duct flexible connectors to PVC, avoid sharp bends, as they restrict airflow. Ensure the flexible ducting hose remains smooth and tension-free.
A proper connection maintains steady airflow and supports vibration isolation, improving the system’s overall durability and noise control.
How tight should a flexible duct be?
A flexible duct connector should be tight enough to prevent air leakage but loose enough to absorb vibration effectively. Over-tightening the fabric section can cause tearing or restrict movement, while a loose connector may leak air or create noise. The ideal installation leaves a small, even gap that allows flexibility under vibration.
During installing flexible duct connector processes, always check for alignment and fabric tension before final fastening. For HVAC duct flexible connector systems, the fabric should not touch the moving parts of the fan or duct edges. Proper tension ensures optimal isolation, longer lifespan, and efficient system performance. When maintained regularly, a correctly installed connector keeps air pressure balanced and prevents costly HVAC downtime.
Using quality flexible duct connectors ensures quiet, efficient, and durable HVAC operation for every commercial and industrial application.
