Flush access door

Flush-access-door_1

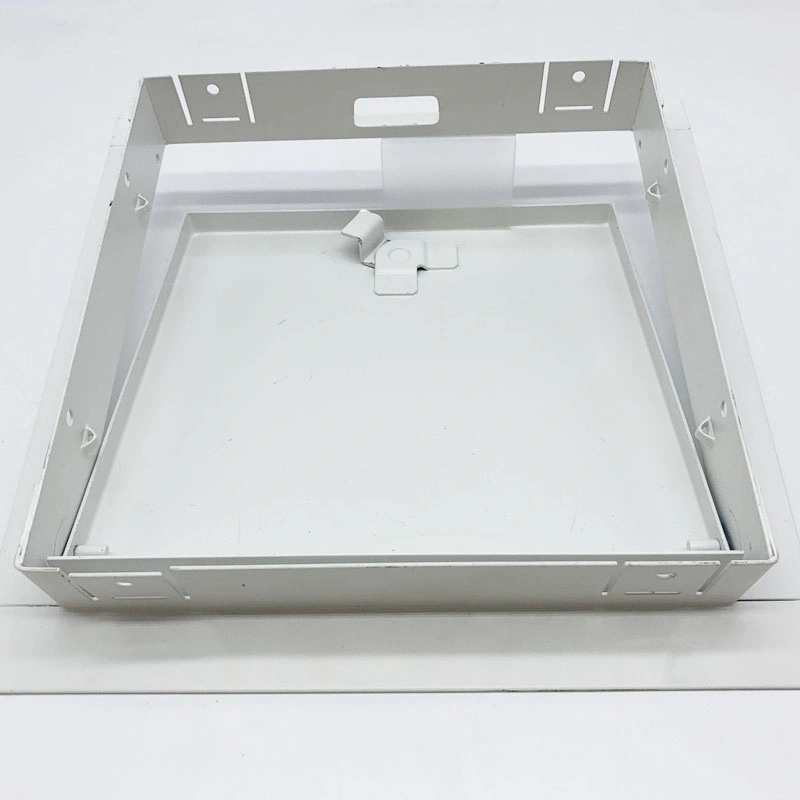

Flush-access-door_2

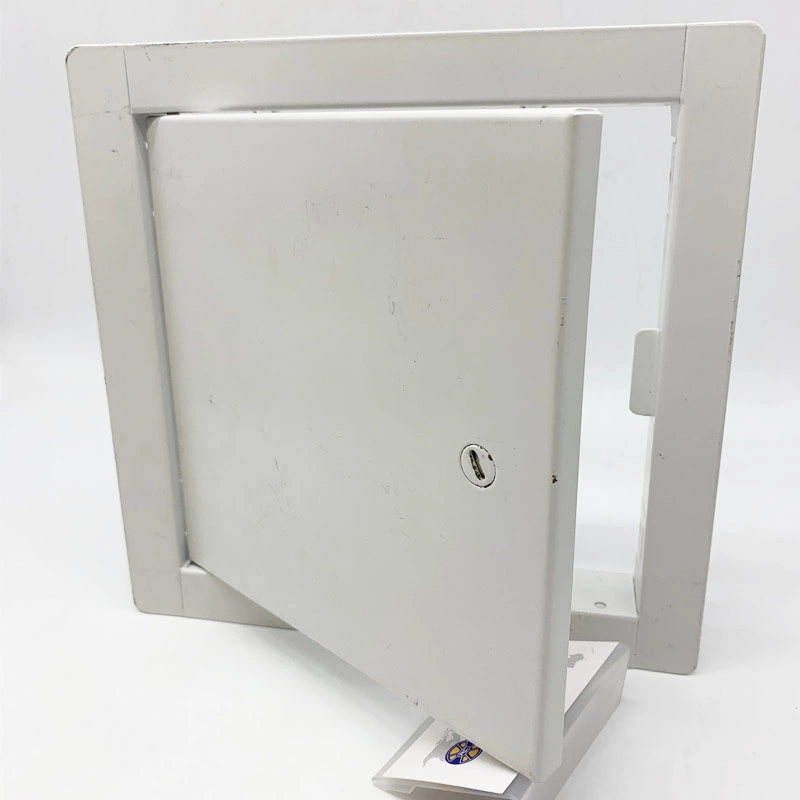

Flush-access-door_3

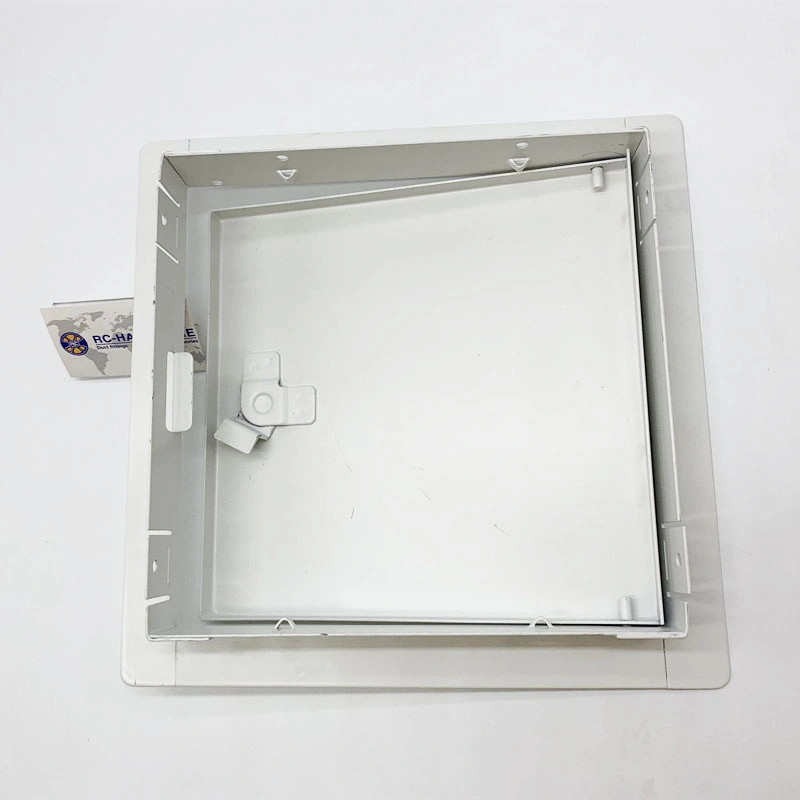

Flush-access-door_4

Product: Access door Door: Flush to frame with reinforced edges Frame: Knock over mounting tabs provided on 6×6, 8×8, 10×10 and 12×12 Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baked-on enamel Material: 18 gauge steel door and frame Hinge: Concealed Hinge Pin Standard

Product: Access door

Door: Flush to frame with reinforced edges

Frame: Knock over mounting tabs provided on 6×6, 8×8, 10×10 and 12×12

Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baked-on enamel

Material: 18 gauge steel door and frame

Hinge: Concealed Hinge Pin

Standard Latch: Stainless steel slot screwdriver operated cam latch

Optional Latches/Locks: Cylinder lock and key, allen head cam latch, spanner head cam latch

OEM SERVICE

Envases a medida

ISO 9001

SGS

Parameter

Item code	size	Weight(kg)
inch	mm
RC-#ED	6x6	152x152	0.66
RC-#ED	8x8	203x203	0.95
RC-#ED	10x10	254x254	1.28
RC-#ED	12X12	305x305	1.66
RC-#ED	14x14	356x356	2.08
RC-#ED	16X16	406x406	2.57
RC-#ED	18X18	457x457	3.01
RC-#ED	20x20	508x508	3.66
RC-#ED	24X24	609x609	4.88
RC-#ED	24X36	610x914	8
