wall marble bracket

wall-marble-bracket_1

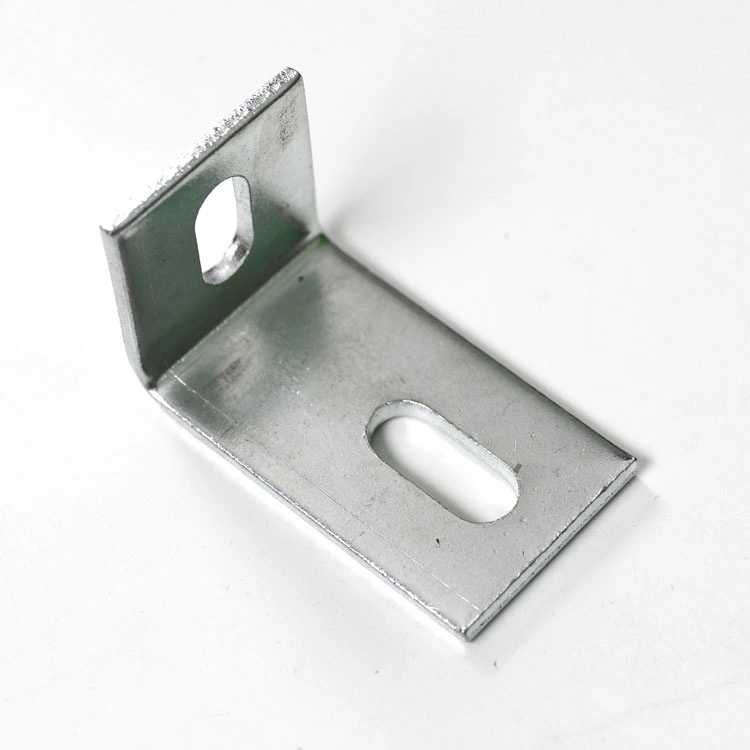

wall-marble-bracket_2

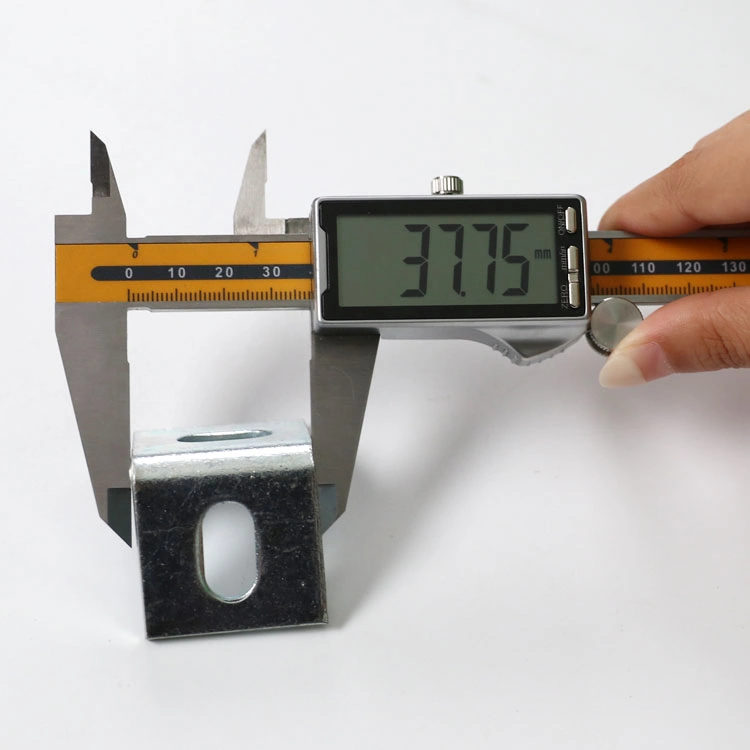

wall-marble-bracket_3

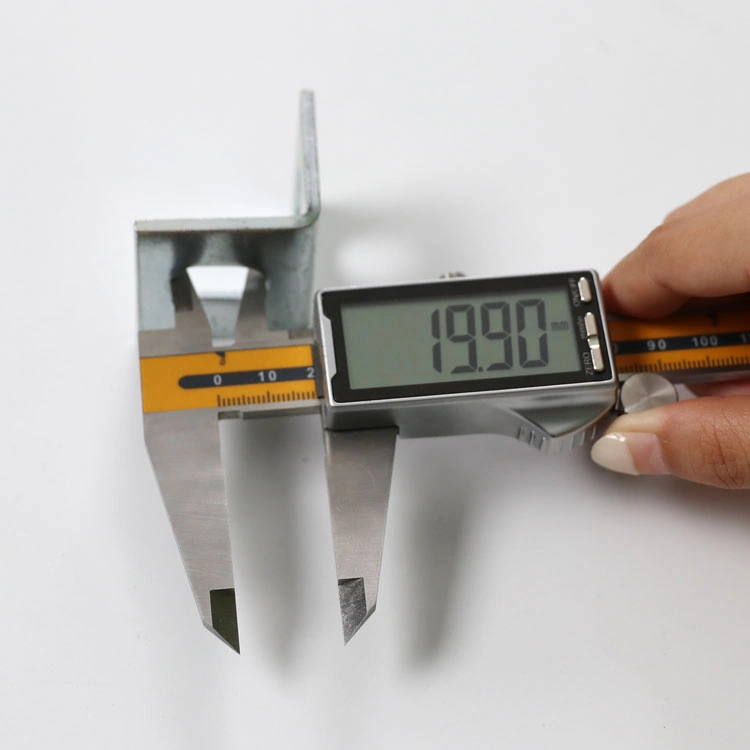

wall-marble-bracket_4

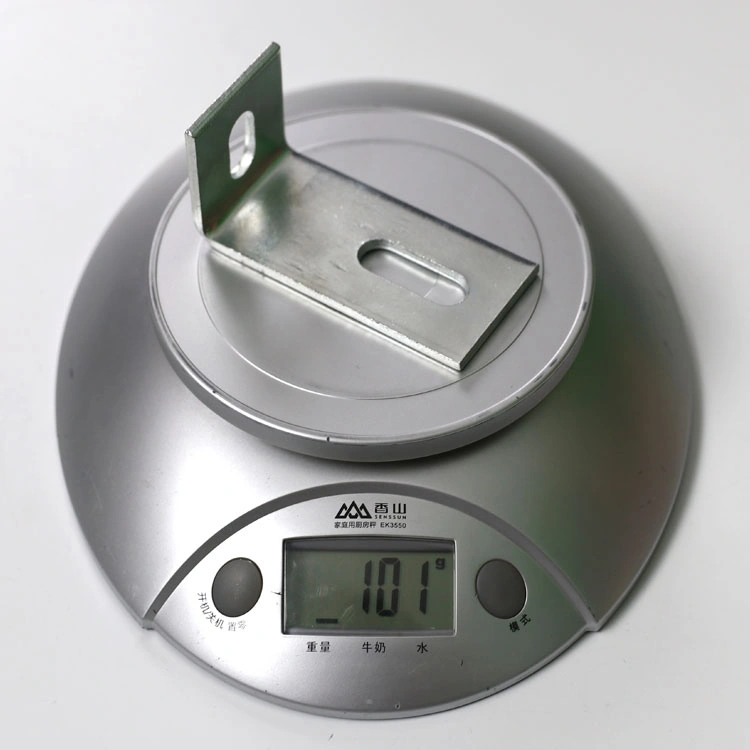

wall-marble-bracket_5

Angle bracket for cladding system 1. Suitable for concrete walls. Anchors are fixed directly on to concrete walls with expansion bolts. 2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half 3. The weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining against wind suction and pressure 4. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure 5. Three – dimensional adjustability allows quick and easy installation

Product : wall marble bracket

Material : Aluminum,Stainless steel,steel ,brass or customized

Surface treatment: Powder coated,Zinc plated

OEM: Available

OEM SERVICE

Envases a medida

ISO 9001

SGS

Parameter

参数图

Length	width	Hight	thickness	hole diamter	Nut
40	40	40	3.5	10	M8
40	50	40	3.5	10	M8
40	60	40	3.5	10	M8
40	70	40	3.5	10	M8
40	80	40	3.5	10	M8
40	90	40	3.5	10	M8
50	50	50	4.5	13	M10
50	60	50	4.5	13	M10
50	70	50	4.5	13	M10
50	80	50	4.5	13	M10
50	90	50	4.5	13	M10
50	100	50	4.5	13	M10
40	40	40	3	10*20
40	40	40	4	10*20
40	60	40	4	10*20
