Insulated access door

Insulated-access-door_1

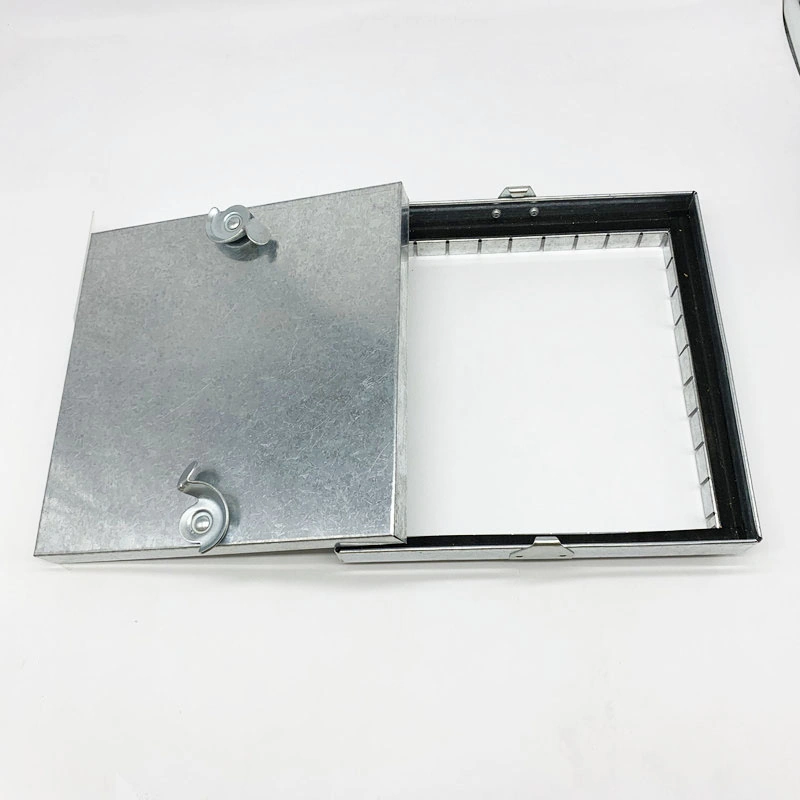

Insulated-access-door_2

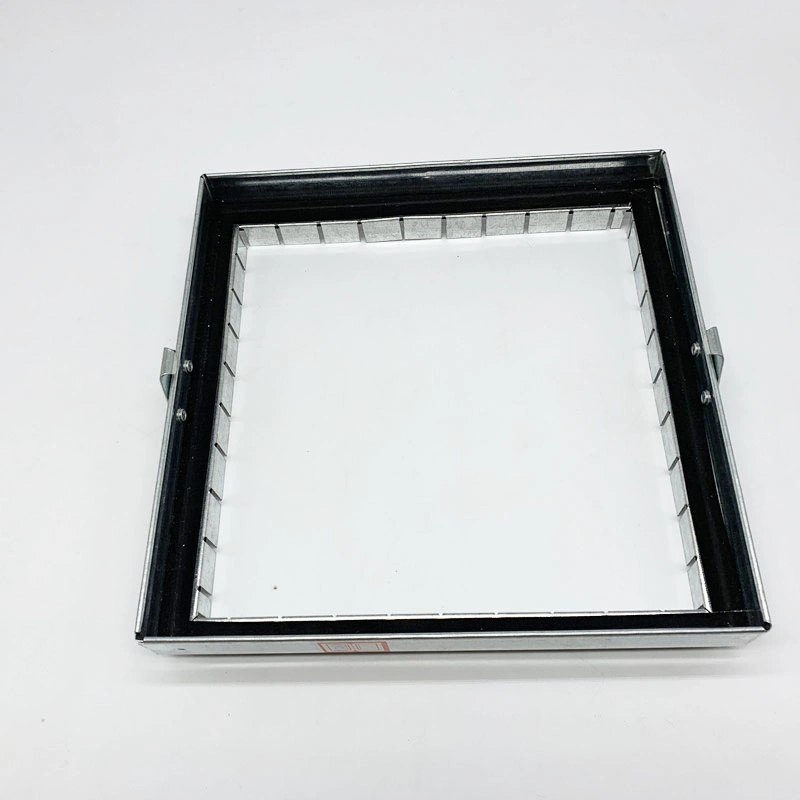

Insulated-access-door_3

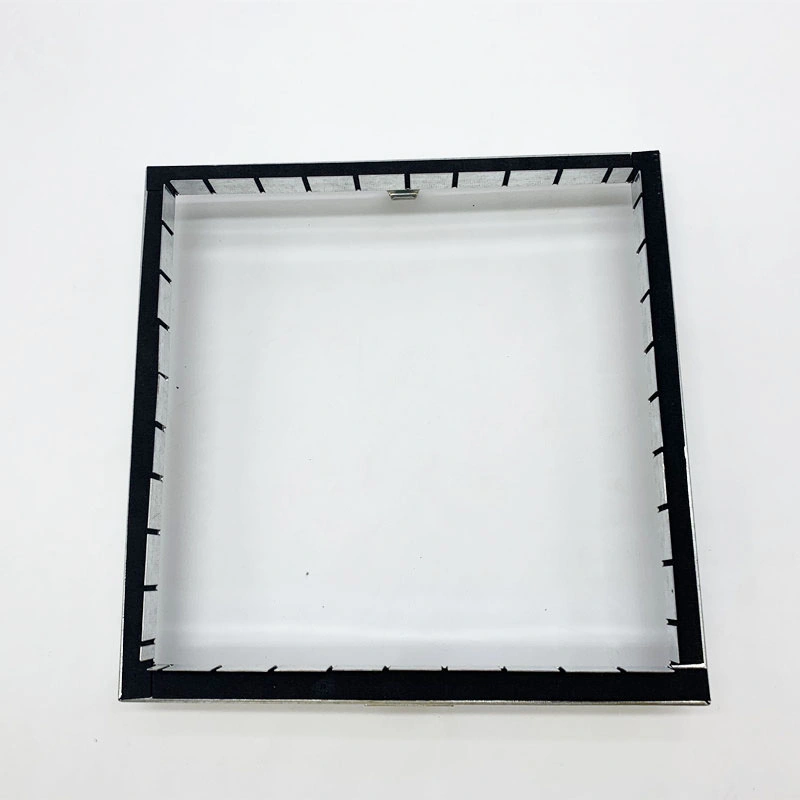

Insulated-access-door_4

Product: Access door Door: 24 gauge galvanized steel panels Frame: 24 gauge with 5/8″ notched knock over tabs Insulation: 2″ fiberglass insulation Gasketing: 1/8″ thick by 1/2″ wide closed cell neoprene gasketing between door and frame and also between frame and duct Latch: Cam latches. Finish: Mill finish Material: Galvanized steel

Product: Access door

Door: 24 gauge galvanized steel panels

Frame: 24 gauge with 5/8″ notched knock over tabs

Aislamiento: 2″ fiberglass insulation

Gasketing: 1/8″ thick by 1/2″ wide closed cell neoprene gasketing between door and frame and also between frame and duct

Latch: Cam latches.

Finish: Mill finish

Material: Galvanized steel

OEM SERVICE

Envases a medida

ISO 9001

SGS

Parameter

Item code	size	Weight(kg)
inch	mm
RC5080	6X6	150x150	0.6
RC5080	8X8	200x200	0.8
RC5080	10X10	250x250	1.3
RC5080	12X12	300x300	1.7
RC5080	14X14	350x350	2.2
RC5080	16X16	400x400	2.4
RC5080	18X18	450x450	3.1
RC5080	20X20	500x500	4.1
RC5080	24X24	610x610	5.5
